Understand the structural forces driving basement wall damage and how modern, non-invasive engineering solves foundation settling without major yard excavation.
The Structural Impact of Hydrostatic Strain on Langhorne Foundations
Discovering a fresh crack in your basement wall is a stressful moment for any homeowner. Whether you catch a thin fracture running through a poured concrete wall or notice a stair-step crack along a mortar joint in a cinder block foundation, these anomalies should never be ignored. In the mid-Atlantic climate of Langhorne and surrounding Bucks County, a crack is rarely just a cosmetic flaw—it is a clear sign of structural stress caused by environmental forces working against your home.
The primary culprit behind this damage is hydrostatic pressure combined with local soil dynamics. The region features highly expansive clay soil profiles that absorb immense amounts of water during heavy seasonal rains. As the clay saturates, it swells significantly, acting like a heavy wedge that pushes inward against your foundation walls. When winter freeze-and-thaw cycles add to this movement, the lateral load can quickly exceed the structural limits of concrete.
To repair this damage permanently, you must move past temporary DIY hardware store fixes. Modern structural engineering offers two highly effective, non-invasive internal solutions: Hydrophobic Zert Port Injections and Rhino Carbon Fiber Structural Straps. Choosing the right method depends on whether your foundation needs water mitigation or structural stabilization.
Hydrophobic Polyurethane Injections: The Ultimate Moisture Seal
When a poured concrete foundation experiences minor settling or early-stage hydrostatic pressure, it often develops vertical or diagonal hairline cracks. While these fractures may not immediately threaten the structural integrity of your home, they create easy pathways for groundwater intrusion, leading to high basement humidity, efflorescence, and mold growth.
For these types of cracks, hydrophobic polyurethane injection through mechanical zert ports is the gold standard for repair. Unlike rigid hydraulic cements that quickly shrink, crack, and pull away from the concrete, polyurethane remains highly flexible after it cures.
The application process is highly precise. Technicians drill angled holes intersecting the crack at strategic intervals and install mechanical injection ports. A specialized hydrophobic polyurethane resin is then pumped deep into the fracture under high pressure. The moment this liquid resin comes into contact with hidden moisture inside the wall, a chemical reaction occurs. The polyurethane expands up to 20 times its original volume, transforming into a dense, closed-cell foam that fills every tiny void all the way out to the exterior soil line. Because the cured material remains elastomeric, it expands and contracts naturally with seasonal temperature shifts without breaking its waterproof seal.
Rhino Carbon Fiber Straps: Arresting Inward Wall Movement
If your basement features concrete cinder block walls, lateral soil pressure creates a different kind of structural issue. Instead of clean vertical fractures, the mortar joints between blocks weaken, often causing horizontal cracks to open along the middle of the wall. Over time, the wall begins to deflect inward—a condition known as bowing. This is a critical structural issue that a simple chemical injection cannot fix.
Historically, repairing a bowing wall required intrusive, expensive solutions like heavy backyard excavation or installing bulky steel I-beams that ruined basement square footage. Today, aerospace-grade carbon fiber technology provides a non-invasive, permanent alternative.

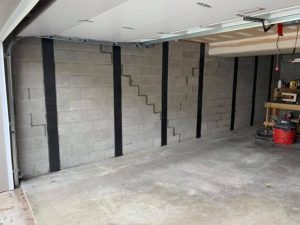

The Rhino Carbon Fiber Structural System utilizes carbon fiber straps that are ten times stronger than steel in tensile strength. These flat straps are bonded directly to the interior face of the foundation wall using a high-strength structural epoxy. The top of each strap is mechanically secured to the home’s heavy sill plate and floor joists using a galvanized steel bracket, while the bottom is anchored to the concrete floor slab. Once installed, the straps form an unyielding reinforcement matrix that completely stops further inward wall movement, permanently preserving your home’s structural footprint.
Frequently Asked Questions About Foundation Repair
How do I know if a basement wall crack is structural or cosmetic?
Hairline vertical cracks are common in poured basements and are typically caused by initial concrete curing and shrinkage. However, any horizontal crack, stair-step fracture along block joints, or crack wider than 1/4 inch is a primary warning sign of structural movement that requires immediate professional evaluation.
Can you paint or drywall over carbon fiber foundation straps?
Yes. One of the biggest design advantages of Rhino Carbon Fiber straps is their incredibly low profile. They lay virtually flush against the foundation wall, allowing you to paint directly over them or easily build standard drywall framing over the area without sacrificing valuable basement square footage.
How long do hydrophobic polyurethane injection repairs last?
Hydrophobic polyurethane chemical grout is engineered to be a permanent solution. Because it is chemically inert and highly flexible, it does not biodegrade, shrink, or dry out over time, providing a lifelong barrier against active groundwater leaks when installed correctly by certified technicians.
Secure the structural core of your home before minor settling becomes an expensive failure. If you have noticed changing cracks or signs of wall deflection in your lower level, turn to the structural specialists.
Contact Aqua Dry Basement Waterproofing today to schedule a detailed, zero-pressure 21-point engineering inspection, and learn more about our permanent structural repairs backed by a deed-linked, fully transferable lifetime warranty.
